factory Outlets for Surface Planer And Thicknesser - 252mm(10″) Combination Planer Thicknesser – Allwin Detail:

Video

Product Details

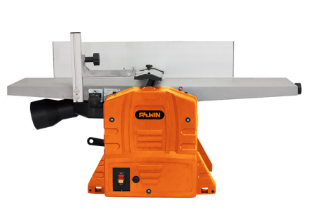

252 MM PLANER / THICKNESSER For those with limited space and the need of a combination planer this compact PT250A is just the number. It’s a perfectly scaled down version of a full-sized machine. Adjustable planer fence included.


• Combination bench top jointer and planer provides a 2in1 machine to maximize work space
• Powerful 1500 Watt motor provides various cutting applications
• Compact bench top design fi ts conveniently in small workshop environments
• Two high speed steel knives for precise, smooth cuts
• Easy height adjustment via knob

For sophisticated DIY experts and the best planning results, we offers Combined Planer Thicknesser with highly accurate planning tables made of high-pressure die cast aluminum. Most hobby woodworkers will not have enough space in their workshop to plane long planks or beams. We therefore designed our planes so that they can easily be set up in a suitable place when required, in the garden or drive, for example. They are perfect for mobile use: compact, handy and lightweight. Thanks to easy use and secure positioning, excellent planning results are possible for beginners, too.

Combination bench top jointer and planer provides a 2 in1 function to maximize work space. Powerful 2HP motor provides various cutting applications. 2 high speed (8500RPM) steel knives for precise & smooth cuts. Precision adjustment knobs.

This 2 in1 combined Planer and Thicknesser for DIY users. The precise jointer table made of die-cast aluminum ensures the best planning results. Due to the compact and stable construction, this table model is also suitable for mobile use. A secure stand, manual height adjustment and the connection of a dust extraction system enable comfortable work.

First straighten, then plan to the desired thickness. The compact device with vibration-damping rubber feet enables not only effortless, but also vibration-free dressing and planning.

The surface planer integrated is used to produce even surfaces, especially with warped and crooked wood or for the dressing of boards, planks or squared timbers.

After the dressing, the workpiece is planned. To do this, the planning table and the suction nozzle are adjusted upwards. Two planning knives take up to 2 mm from the top of the workpiece, which is guided over the extendable planning table and through the thicknessing planer by means of an automatic feed.

Specifications

Dimensions L x W x H: 970 x 490 x 485 mm
Surfacing table size: 920 x 264 mm
Thicknessing table size: 380 x 252 mm
Number of blades: 2
Blade Size:
Cutter block Speed: 8500 rpm

SURFACE PLANNING Plane width: 252 mm
Stock removal max.: 2 mm
THICKNESSING Clearance height / width: 120 – 252 mm
Stock removal max.: 2 mm
Motor 230 V~ Input: 1500 W
Cuts. : 17000 cuts/min.
Fence tilt angle : 45° to 90°

Logistical Data

Weight (net / gross): 26.5 / 30.7 kg
Packaging dimensions: 1020 x 525 x 445 mm
20 Container: 122 pcs
40 Container: 244 pcs
40 HQ Container: 305 pcs
